FEATURES:

•Individual temperature control for each device up to 800 W

•T range:-40ºC to 150ºC

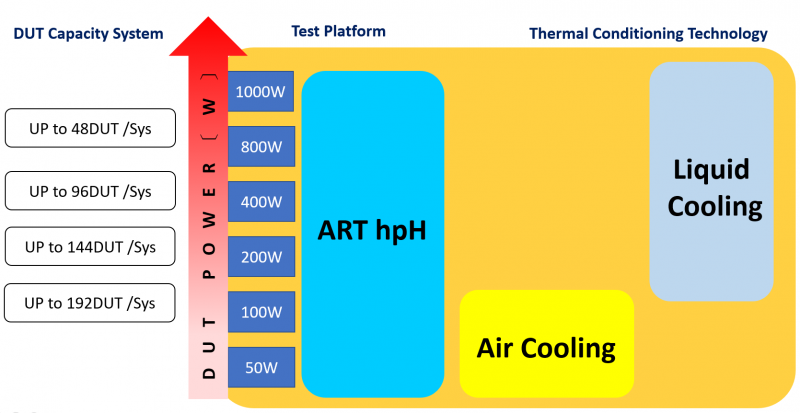

•Adaptive Liquid Cooling Technology Kit combined with Air Cooling

•2 chamber zones,6 test slots each

•1 high current power supply: 3.2 KW(per Slot)

•6 basic power supplies ±20V, 60W(per slot)

•288 I/O channels – 20MHz Test Rate

•512MB on board pattern memory(64MV)

BENEFITS:

•Local on BIB DPS-per DUT

•Current / Voltage measurement per single DPS

•High temp. uniformity/Accuracy:± 3ºC with load up to 5KW

•Fast temp. gradient: 5ºC/min with devices turned off

•Per device independent Power Supplies

•Per device independent current measurement

Check more information on https://www.eles.com/
